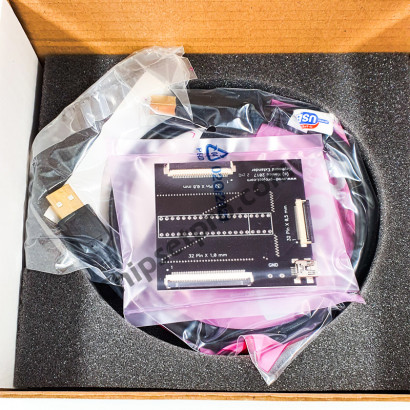

In package included:

 1 pcs Programmer SVOD Ver. 4

 1 pcs USB Connection cable

 1 pcs EFI Ribbon Cable ( Hirose12 + Hirose 30 + Molex30 )

 1 pcs JTAG DIP 8 PIN Silicone cable

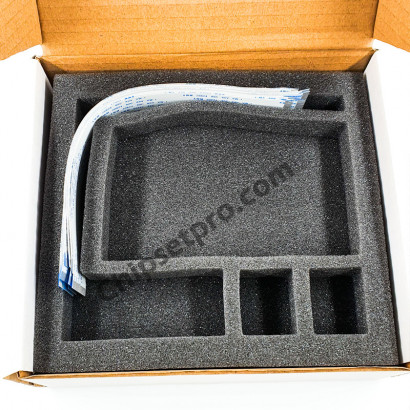

 12pcs Flex cables: 34pin, 32pin, 30pin, 26pin (all cables what you see in picture).

 1 pcs Extended board of ports for keyboard module

Please to select shipping option in checkout:

Economy: 10-35 working days (Europe and Worldwide)

Expedited : 5-10 working days  (Europe and Worldwide)

SVOD V4 programmer  is a universal programmer for various microcircuits.

 As you know you can program different kinds of chips such as:  SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of "bad contact" when connecting chips.

Protocol: JEDEC ID (spi25 flash, Nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have id with 128 byte info).

 Specifications:

*SVOD 4 port of connection to the computer: usb 2.0- 3.0 high speed,

*SVOD 4 CPU: Processor ARM7, 480MHz

*SVOD 4 Voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25V, 1.2V, 0.8V

*SVOD 4 GPIO PIN: 48+16

 -------------------------------------------------------------------------

As you know you can program different kinds of chips such as:  SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC BGA, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of "bad contact" when connecting chips.

Supported:

KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc

NPCE288N/NPCE388N

ITE IT5571VG PROGRAMMABLE

ITE IT8380E PROGRAMMABLE

ITE IT8380VG PROGRAMMABLE

ITE IT8386 PROGRAMMABLE

ITE IT8522 PROGRAMMABLE

ITE IT8580 PROGRAMMABLE

ITE IT8585E PROGRAMMABLE

ITE IT8586E PROGRAMMABLE

ITE IT8586VG PROGRAMMABLE

ITE IT8587E PROGRAMMABLE

ITE IT8589 PROGRAMMABLE

ITE IT8886H PROGRAMMABLE

ITE IT8886HE PROGRAMMABLE

ITE IT8985E PROGRAMMABLE

ITE IT8987E PROGRAMMABLE

ITE IT8995E PROGRAMMABLE

NUVOTON NPCE288NA0DX PROGRAMMABLE

NUVOTON NPCE388NA0DX PROGRAMMABLE

LENOVO IT8227VG PROGRAMMABLE

MEC1404-NU 128-VTQFP PROGRAMMABLE 128 KB

SMSC MEC1404-SZ 144-WFBGA PROGRAMMABLE 128 KB

SMSC MEC1406-NU 128-VTQFP PROGRAMMABLE 160 KB

SMSC MEC1406-SZ 144-WFBGA PROGRAMMABLE 160 KB

SMSC MEC1408-NU 128-VTQFP PROGRAMMABLE 192 KB

SMSC MEC1408-SZ 144-WFBGA PROGRAMMABLE 192 KB

SMSC MEC1414-NU 128-VTQFP PROGRAMMABLE 128 KB

SMSC MEC1414-SZ 144-WFBGA PROGRAMMABLE 128 KB

SMSC MEC1416-NU 128-VTQFP PROGRAMMABLE 160 KB

SMSC MEC1416-SZ 144-WFBGA PROGRAMMABLE 160 KB

SMSC MEC1418-NU 128-VTQFP PROGRAMMABLE 192 KB

SMSC MEC1418-SZ 144-WFBGA PROGRAMMABLE 192 KB

SMSC MEC1609 PROGRAMMABLE

SMSC MEC1619 PROGRAMMABLE

SMSC MEC1632 PROGRAMMABLE

SMSC MEC1633 PROGRAMMABLE

SMSC MEC1641 PROGRAMMABLE

SMSC MEC1650 PROGRAMMABLE

SMSC MEC1651 PROGRAMMABLE

SMSC MEC1653 PROGRAMMABLE

SMSC MEC5035 PROGRAMMABLE

SMSC MEC5045 PROGRAMMABLE

SMSC MEC5055 PROGRAMMABLE

SMSC MEC5075 PROGRAMMABLE

SMSC MEC5085 PROGRAMMABLE

SMSC MEC1609 PROGRAMMABLE

 SMSC MEC1609I PROGRAMMABLE

SMSC MEC1633L PROGRAMMABLE

 EPF011/021/035/036/037

 SMSC MEC5085 NON-PROGRAMMABLE

 You can buy a brand new programmer / Tested 100% .

The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes.

MANY FLASHING FILES IN DATABASE FOR FREE

PDF FILES

ENE_KB9012_on_Precision_M3800_LA-9941P.pdf

ENE_KB9022_on_Thinkpad_S1_Yoga_12_LA-A342P_.pdf

In-Circuit_Serial_Programming_with_SVOD3.pdf

ITE_IT8586_on_Thinkpad_Yoga_2_Pro_VIUU3_NM-A074.pdf

MEC5075_on_Latitude_E7440_LA-9591P.pdf

if you are not from Europe, please inquire about customs tax, VAT of your country.

We send products in Russia via registered POST (12-20 days).

Colombia, Paraguay, Brazil, Mexico - before placing an order, please to ask your customs about tax and duties.

Colombia, Paraguay, Brazil, Mexico - antes de realizar un pedido, consulte con la aduana sobre la cantidad de impuestos y aranceles.

Si no eres de Europa, consulta sobre el impuesto de aduanas, el IVA de tu país.
