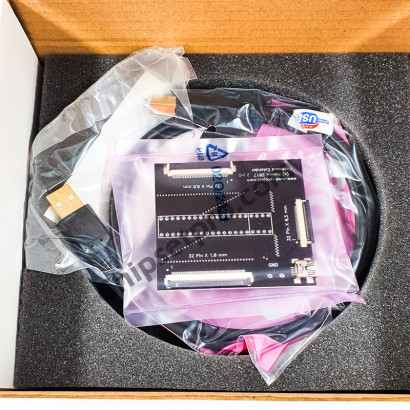

In package included:

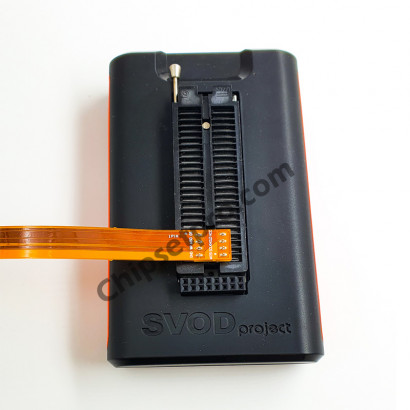

1 pcs Programmer SVOD Ver. 4
1 pcs USB Connection cable

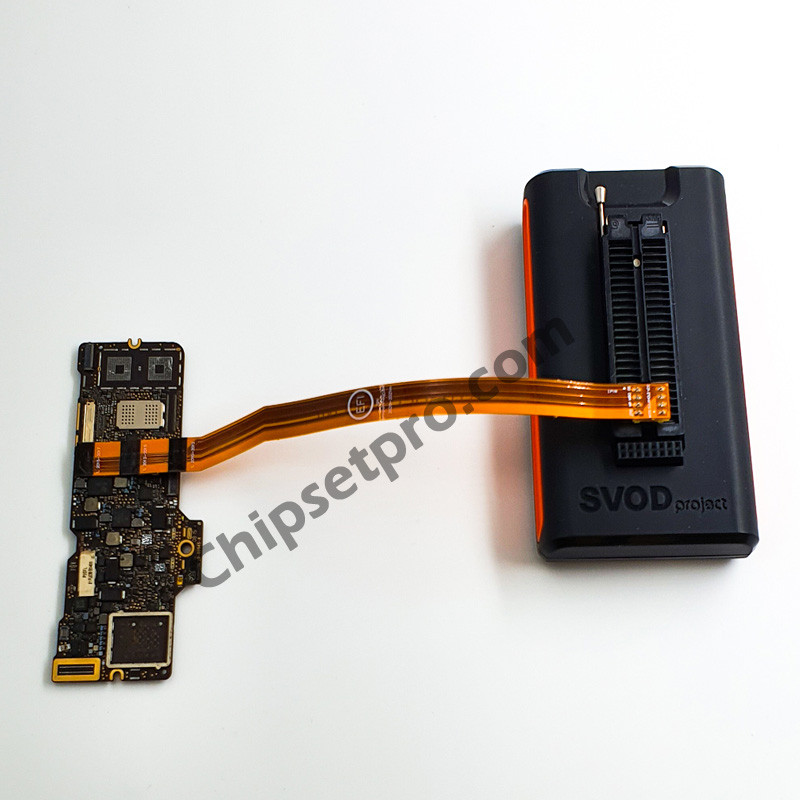

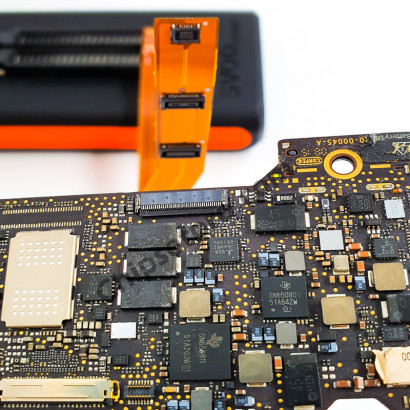

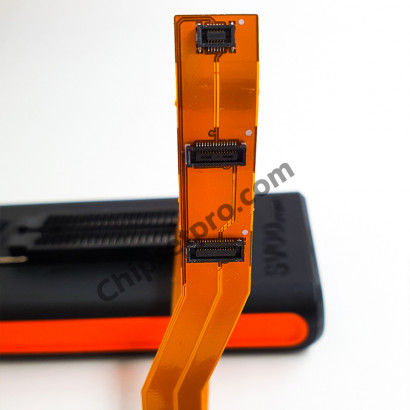

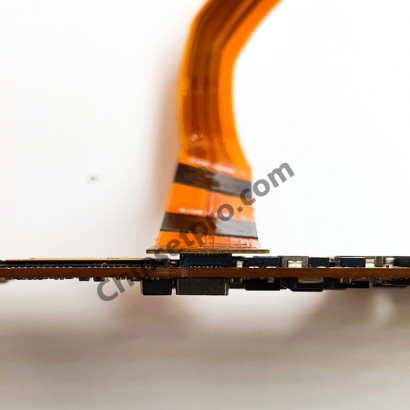

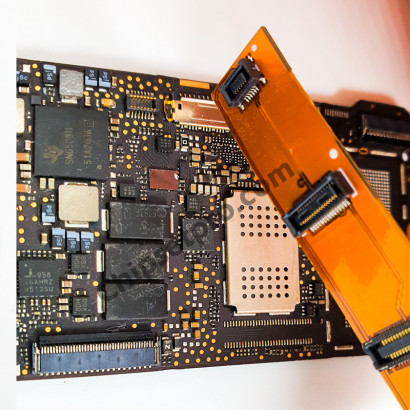

1 pcs EFI Ribbon Cable for Mac (hirose12, hirose30, Molex30 connectors)
1 pcs Extended board of ports for keyboard module

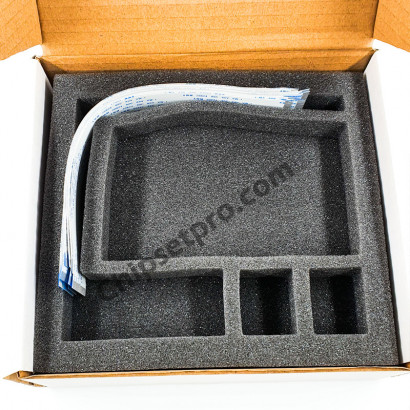

12pcs Flex cables: 34pin, 32pin, 30pin, 26pin (all cables what you see in picture).
Please to select shipping option in checkout:
Economy: 10-35 working days (Europe and Worldwide)
Expedited : 5-10 working days (Europe and Worldwide)
SVOD V4 programmer is a universal programmer for various microcircuits.
As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of "bad contact" when connecting chips.
Protocol: JEDEC ID (spi25 flash, nand have 5 byte ID, spi NAND have 512 byte ID, nor48,40 have 3 byte id, emmc have 512 byte id, new spi25 have sfdp with 128 byte info).
Specifications:
*SVOD 4 port of connection to the computer: usb 2.0- 3.0 high speed,
*SVOD 4 CPU: Processor ARM7, 480MHz
*SVOD 4 Voltage: 12V, 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.25V, 1.2V, 0.8V
*SVOD 4 GPIO PIN: 48+16
-------------------------------------------------------------------------
SPI ROM EFI cable - Comptible Mbook's list until 2017 year if you use SVOD programmers,
A1534 emc 2746 820-00045, A1534 emc 2991 820-00244, A1534 emc 3099 820-00687, A1370 emc 2393 820-2796, A1370 EMCXXXX 820-2955, A1370 EMCXXXX 820-2955, A1370 820-2855-A, A1465 emc 2558 820-3208, A1465 emc 2631 820-3435, A1465 emc 2924 820-00164, A1304 EMCXXXX 820-2375, A1304 EMCXXXX 820-2375, A1369 emc 2469 820-3023, A1466 emc 259 820-32509, A1466 emc 2632 820-3437, A1466 emc 2925 820-00165, A1466 emc 3178 820-00165, A1425 emc 2512 820-3462, A1502 emc 2678 820-3536, A1502 emc 2678 820-3476, A1502 emc 2875 820-3476, A1502 emc 2835 820-4924, A1398 emc 2512 820-3332, A1398 emc 2673 820-3332, A1398 emc 2746 820-3662, A1398 emc 2876 820-3662, A1398 emc 2745 820-3787, A1398 emc 2881 820-3787, A1398 emc 2909 820-00138, A1398 emc 2910 820-00163, A1398 emc 2910 820-00426, A1708 EMCXXXX 820-00361, A1708 emc 2978 820-00875, A1708 emc 3164 820-00840, A1706 emc 3071 820-00239, A1706 emc 3163 820-00923, A1707 emc 3072 820-00281, A1707 emc 3162 820-00928, A1283 emc 2264 820-2366,A1283 emc 2336 820-XXXX, A1347 emc 2364 820-2577, A1347 emc 2442 820-2993, A1347 emc 2442 820-3059, A1347 emc 2442 820-3017, A1347 emc 2570 820-3227, A1347 emc XXXX 820-3228, A1347 emc 2840 820-5509
-------------------------------------------------------------------------
As you know you can program different kinds of chips such as: SPI, I2C, ONE WIRE, NAND, NAND SPI, NOR, EMMC BGA, JTAG, UART, ENE, MEC, ITE, NUVOTON, parallel synchronous and asynchronous protocols. Automatic detection of "bad contact" when connecting chips.
Supported:
KB9010,KB9012, KB9016, KB9018, KB9022, KB9028qc
NPCE288N/NPCE388N
ITE IT5571VG PROGRAMMABLE
ITE IT8380E PROGRAMMABLE
ITE IT8380VG PROGRAMMABLE
ITE IT8386 PROGRAMMABLE
ITE IT8522 PROGRAMMABLE
ITE IT8580 PROGRAMMABLE
ITE IT8585E PROGRAMMABLE
ITE IT8586E PROGRAMMABLE
ITE IT8586VG PROGRAMMABLE
ITE IT8587E PROGRAMMABLE
ITE IT8589 PROGRAMMABLE
ITE IT8886H PROGRAMMABLE
ITE IT8886HE PROGRAMMABLE
ITE IT8985E PROGRAMMABLE
ITE IT8987E PROGRAMMABLE
ITE IT8995E PROGRAMMABLE
NUVOTON NPCE288NA0DX PROGRAMMABLE
NUVOTON NPCE388NA0DX PROGRAMMABLE
LENOVO IT8227VGPROGRAMMABLE
MEC1404-NU 128-VTQFP PROGRAMMABLE 128 KB
SMSC MEC1404-SZ 144-WFBGA PROGRAMMABLE 128 KB
SMSC MEC1406-NU 128-VTQFP PROGRAMMABLE 160 KB
SMSC MEC1406-SZ 144-WFBGA PROGRAMMABLE 160 KB
SMSC MEC1408-NU 128-VTQFP PROGRAMMABLE 192 KB
SMSC MEC1408-SZ 144-WFBGA PROGRAMMABLE 192 KB
SMSC MEC1414-NU 128-VTQFP PROGRAMMABLE 128 KB
SMSC MEC1414-SZ 144-WFBGA PROGRAMMABLE 128 KB
SMSC MEC1416-NU 128-VTQFP PROGRAMMABLE 160 KB
SMSC MEC1416-SZ 144-WFBGA PROGRAMMABLE 160 KB
SMSC MEC1418-NU 128-VTQFP PROGRAMMABLE 192 KB
SMSC MEC1418-SZ 144-WFBGA PROGRAMMABLE 192 KB
SMSC MEC1609 PROGRAMMABLE
SMSC MEC1619 PROGRAMMABLE
SMSC MEC1632 PROGRAMMABLE
SMSC MEC1633 PROGRAMMABLE
SMSC MEC1641 PROGRAMMABLE
SMSC MEC1650 PROGRAMMABLE
SMSC MEC1651 PROGRAMMABLE
SMSC MEC1653 PROGRAMMABLE
SMSC MEC5035 PROGRAMMABLE
SMSC MEC5045 PROGRAMMABLE
SMSC MEC5055 PROGRAMMABLE
SMSC MEC5075 PROGRAMMABLE
SMSC MEC5085 PROGRAMMABLE
SMSC MEC1609 PROGRAMMABLE
SMSC MEC1609I PROGRAMMABLE
SMSC MEC1633L PROGRAMMABLE
EPF011/021/035/036/037
SMSC MEC5085 NON-PROGRAMMABLE
You can buy a brand new programmer / Tested 100% .
The mode of displaying POST codes of the laptop motherboard is implemented. Choose the software in the online base of your motherboard, download, select it in the choice of motherboard, connect the motherboard with a loop to the keyboard connector, and read the post codes by running the software in read mode of POST codes.
MANY FLASHING FILES IN DATABASE FOR FREE WHEN YOU WILL CONNECT PROGRAMMER
if you are not from Europe, please inquire about customs tax, VAT of your country.
We send products in Russia via registered POST (12-20 days).
Colombia, Paraguay, Brazil, Mexico - before placing an order, please to ask your customs about tax and duties.
Colombia, Paraguay, Brazil, Mexico - antes de realizar un pedido, consulte con la aduana sobre la cantidad de impuestos y aranceles.
Si no eres de Europa, consulta sobre el impuesto de aduanas, el IVA de tu país.
