SPI SAM EFIROM Debug Connector (ang.)

45,00 €

Netto

Przykład:

1 pc kabla SPI J6100 + ręcznik użytkownika
2) programista CH341A

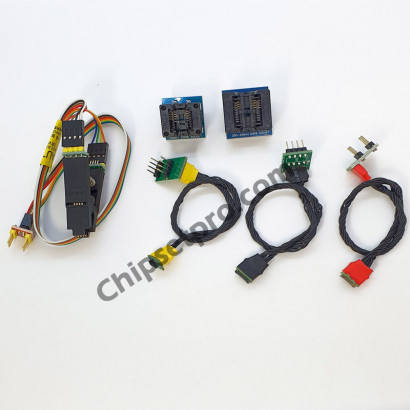

In package include:

1 pcs SPI cable J6100 + user manual

1 pcs Programmer CH341A for GIFT

You can select shipping option in checkout: Economy or Expedited

Economy: 10-35 working days (Europe and Worldwide)

Expedited : 5-10 working days (Europe and Worldwide)

------------------------------------------------------------

SPI ROM cable - Comptible Macbook's list until 2017 year if you use SVOD programmer:

A1534 emc 2746 820-00045, A1534 emc 2991 820-00244, A1534 emc 3099 820-00687, A1370 emc 2393 820-2796, A1370 EMCXXXX 820-2955, A1370 EMCXXXX 820-2955, A1370 820-2855, A1465 emc 2558 820-3208, A1465 emc 2631 820-3435, A1465 emc 2924 820-00164, A1304 EMCXXXX 820-2375, A1304 EMCXXXX 820-2375, A1369 emc 2469 820-3023, A1466 emc 259 820-32509, A1466 emc 2632 820-3437, A1466 emc 2925 820-00165, A1466 emc 3178 820-00165, A1425 emc 2512 820-3462, A1502 emc 2678 820-3536, A1502 emc 2678 820-3476, A1502 emc 2875 820-3476, A1502 emc 2835 820-4924, A1398 emc 2512 820-3332, A1398 emc 2673 820-3332, A1398 emc 2746 820-3662, A1398 emc 2876 820-3662, A1398 emc 2745 820-3787, A1398 emc 2881 820-3787, A1398 emc 2909 820-00138, A1398 emc 2910 820-00163, A1398 emc 2910 820-00426, A1708 EMCXXXX 820-00361, A1708 emc 2978 820-00875, A1708 emc 3164 820-00840, A1706 emc 3071 820-00239, A1706 emc 3163 820-00923, A1707 emc 3072 820-00281, A1707 emc 3162 820-00928, A1283 emc 2264 820-2366,A1283 emc 2336 820-XXXX, A1347 emc 2364 820-2577, A1347 emc 2442 820-2993, A1347 emc 2442 820-3059, A1347 emc 2442 820-3017, A1347 emc 2570 820-3227, A1347 emc XXXX 820-3228, A1347 emc 2840 820-5509

If we do not list your model, please contact and ask.

------------------------------------------------------------

As you know you can flashing manually many kinds of bios for Mcbook.

With this Professional SET you can to make adjustments manually for clearing ME region, apple icloud clearing , apple bios password clearing and other corrections.

This flashing set used for Mcbook, McBook Air and new McBook Pro models from 2010 to 2017

It has three connectors for the years: until 2012, after 2012 – 2014 and 2015 – 2017 (please to check the picture gallery with connection ports --> MOLEX 30pin, HIROSE 30pin, HIROSE 12pin ).

You can read bios chip without de-soldering process.

If you use individual CH341A, it supports:

MBA11 2015 A1465 820-00164
MBA11 2013 A1465 820-3435
MBA13 2011 A1369 820-3023
MBA11 2011 A1370 820-3024
MBA 13 2013 A1466 820-3437
MBA 13 2012 A1466 820-3209
MBA13 2015 A1466 820-00165
MBA13 2017 A1466 820-00165
MBP13 2016 A1708 820-00875
MBP13 2016 A1706 820-00239
MBP15 2017 A1707 820-00928
MBP15 2016 A1707 820-00281
MBP13 2017 A1706 820-00923
MBP13 2017 A1708 820-00840
MBP13 2015 A1502 820-4924
MBP13 2014 A1502 820-3476
MBP13 2014 A1502 820-3536
MBP13 2013 A1502 820-3476
MBP13 2014 A1502 820-3476
MBP15 2012 A1398 820-3332
MBP15 2013 A1398 820-3332
MBP15 2013 A1398 820-3662
MBP15 2013 A1398 820-3787
MBP15 2014 A1398 820-3662
MBP15 2015 A1398 820-00138
MBP15 2015 A1398 820-00163
MBP12 2015 A1534 820-00045
MBP12 2016 A1534 820-00244
MacMini 2011 A1347 820-2993

Apple Imac 27 A1312 820-2828-A_MX25L6406E - EFI ribbon cable not compatible

Apple A1278 820-2936-b mx25l6406E - EFI ribbon cable not compatible

Apple iMac 27 A1312-820-2828-A-MX25L6406E - EFI ribbon cable not compatible

Apple Macbook A1286 820-2330-A-MX25L6206E - EFI ribbon cable not compatible

Apple MacBook Pro A1297 820-2914-B-MX25L6406E - EFI ribbon cable not compatible

Apple MacBook Pro A1278-820-2936-B-MXIC MX25L6406E - EFI ribbon cable not compatible

Apple MacBook Pro A1278-820-2936-B-MX25L6408E - EFI ribbon cable not compatible

Important Information

BEFORE BUYING, PLEASE TO CHECK THE CONNECTION PORTS

--> MOLEX 30pin, HIROSE 30pin, HIROSE 12pin <--

Does suitable your motherboard connection port.

FOR ALL NOTEBOOK PLEASE REMOVE BATTERY AND CONNECT POWER ADAPTER UP AUTOMATICALLY . THEN FOR US NEED TO TURN OFF MANUALLY FOR PROGRAMMING BY ENIT SAM CONNECTOR

If some SPI programmer doesn't work, you need to supply +3.3V to 'PP3V3_SUS' of the motherboard.

As mentioned that, you must supply +3.3V to the 'PP3V3_SUS' of the Mainboard using a DC power supply.

Sample +3.3 Volt connection pins are described in the manual.
