RENESAS EZCUBE – narzędzie do tworzenia sztucznych urządzeń rl78 r8c3x lx 78k 0 v850jx3
RENESAS EZ-CUBE – sztuczne urządzenie rl78 r8c3x lx 78k0r 0 v850jx3
The use of programmer selftest command,to check if there is problem itself.
Selftest way I:
Step 1 : Input the SELFTEST in the Enter chip printing,click
Step 2 : Click ,look at the hint in the display area,selftest 0 means the test pass;
Step 3 : Install the NO.1 test board and the short port of VGA ISP(short circuit the 4pins and 11pins,12pins and 15pins);
Step 4 : Click ,check the hint in the software,it will hint Selftest 1,test pass;
Step 5 : Install the NO.2 Self Test Board;
Step 6 : Click ,check the hint in the software,it will hint Selftest 2, test pass;
Selftest way II :
Step 1 : When there is no chip on the locking seat,input the type of 25XX in Enter Chip Printing;
Step 2 : Click ,it will hint that there is no chip or the locking seat hasnt been impacted well,which is normal;
If it hints that there may be a pin empty solder;
Attention : In the case of that some users have no test board,as long as the selftest 0 and 25 chip test pass,the machine is normal.
If there is other hints when doing selftest 0,the way to deal with it could be as following:
The problem of connection with computer and the programmer,please step-by examine according to the hint of failure process;
Hardware trouble like pin electric leakage,problems inside the pins,VPP open circuit,GND open circuit,VPP short circuit,VCC short circuit,GND short circuit,VPP protection not shut off,which must be returned to factory to repair.
Na razie nie dodano żadnej recenzji.
RENESAS EZ-CUBE – sztuczne urządzenie rl78 r8c3x lx 78k0r 0 v850jx3
TVP2588U+/24/26/93/SPI/BIOS/EN25T8080T80 (ANG.) programista

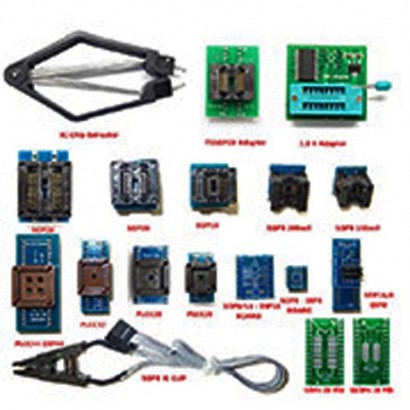

SOP to the PLCC 16 Universal Programmer Adapter Sockets for TL866 (ang.)
